Authenticase is a proprietary mixture of structure-specific nucleases capable of recognizing and cleaving outside mismatch and indel (insertion and/or deletion) regions, ranging from 1-10 basepairs (bp) on double-stranded DNA. The formulation has limited non-specific activity on homoduplex regions of DNA. Authenticase can be used as an error-correction reagent in oligo-based PCR gene assembly by enzymatically removing “mistakes” prior to the final renaturation and amplification step (i.e. removes mismatch/indel errors caused by oligonucleotide synthesis). Alternatively, Authenticase can replace T7 Endonuclease I in the mismatch detection assay used to assess the efficiency of genome editing.
FIGURE 1: Mechanism of Authenticase
Authenticase cleaves dsDNA carrying mismatches or indels, leaving either 3′ or 5′ overhangs.

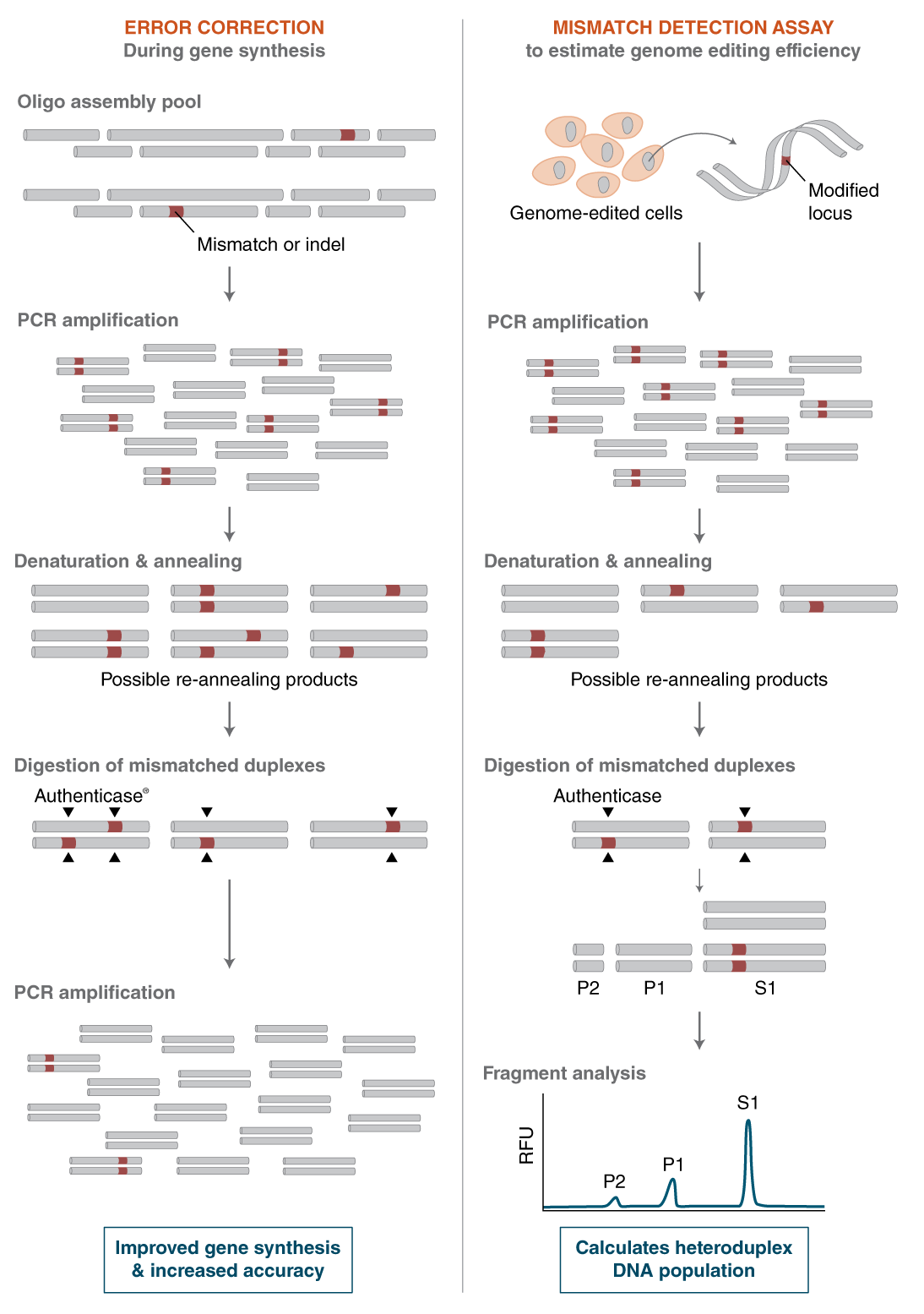

FIGURE 2: Applications of Authenticase
Authenticase is a mixture of structure-specific nucleases capable of recognizing and cleaving outside mismatch and indel (insertion and/or deletion) regions, ranging from 1–10 basepairs (bp) on double-stranded DNA. The formulation has limited non-specific activity on homoduplex regions of DNA. Authenticase can be used as an error-correction reagent in oligo-based PCR gene assembly by enzymatically removing “mistakes” prior to the final renaturation and amplification step. Alternatively, Authenticase can replace T7 Endonuclease I in the mismatch detection assay used to assess the efficiency of genome editing (S1 is the starting material. P1 and P2 are products of Authenticase digestion.).
FIGURE 3: Authenticase Reduces Error Rate as compared to CorrectASE™
Sixteen oligonucleotides (ranging in size from 50–60 nucleotides) were synthesized by IDT® Inc. and used to amplify an MBD gene (645 bp). PCR amplicons were processed further to reduce the error frequency in fragments, as suggested in the manual. Error-corrected fragments were cloned into vectors using NEBuilder® HiFi DNA Assembly Cloning Kit (NEB #E5520) and colonies were isolated from selective plates (LB +amp). 12 DNA plasmids were purified from each set of experiments (12 E. coli colonies per set: 1) No enzyme treatment; 2) Treatment with Authenticase and 3) treatment with CorrectASE™) followed by Sanger DNA sequencing. Authenticase reduces the error rate from 1 out of 645 bases to 1 out of 1935 bases as compared to CorrectASE which was 1 out of 1,419 bases.
FIGURE 4: Detection of Mutations by Authenticase versus T7 Endonuclease I
Mismatch detection comparisons were performed using Authenticase or T7 Endonuclease I. Pools of heteroduplex DNA with a variety of mismatches or indels (e.g. A/C mismatch, T/T mismatch, 2-bp indel, etc.) were artificially created by mixing sequence-defined PCR amplicons followed by heating and re-annealing. Thus, heteroduplex substrates with pre-set mutation frequencies (around 21–25% mutant and 75–79% WT) were established for each variant tested. Mismatch cleavage by Authenticase or T7 Endo I was performed and the reaction products were resolved on an Agilent® Bioanalyzer®. The estimated mutation frequency (% cleavage) was calculated based on the molarity of the observed cleavage products and starting substrate and then graphed with the expected ratio shown as a solid black reference line. Authenticase performs as well or better than T7 Endonuclease I. Authenticase outperforms T7 Endonuclease I if the types of mutations in the population are single base or 2-bp mutation . Authenticase performs as well as T7 Endonuclease I if the types of mutations in the population are indels (insertions/deletions) or more than 3-bp mutations.
This product is related to the following categories:
Quality Control tests are performed on each new lot of NEB product to meet the specifications designated for it. Specifications and individual lot data from the tests that are performed for this particular product can be found and downloaded on the Product Specification Sheet, Certificate of Analysis, data card or product manual. Further information regarding NEB product quality can be found here.
Specifications & Change Notifications
The Specification sheet is a document that includes the storage temperature, shelf life and the specifications designated for the product. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]
The Certificate of Analysis (COA) is a signed document that includes the storage temperature, expiration date and quality controls for an individual lot. The following file naming structure is used to name these document files: [Product Number]_[Size]_[Version]_[Lot Number]
Products and content are covered by one or more patents, trademarks and/or copyrights owned or controlled by New England Biolabs, Inc (NEB). The use of trademark symbols does not necessarily indicate that the name is trademarked in the country where it is being read; it indicates where the content was originally developed. The use of this product may require the buyer to obtain additional third-party intellectual property rights for certain applications. For more information, please email busdev@neb.com.
This product is intended for research purposes only. This product is not intended to be used for therapeutic or diagnostic purposes in humans or animals.
