  • Phusion® High-Fidelity PCR Master Mix with GC Buffer

    Description

    High-Fidelity DNA Polymerases are important for applications in which the DNA sequence needs to be correct after amplification. Manufactured and quality-controlled at New England Biolabs, Thermo Scientific® Phusion High- Fidelity DNA Polymerase offers both high fidelity and robust performance, and thus can be used for all PCR applications. Its unique structure, a novel Pyrococcus-like enzyme fused with a processivity-enhancing domain, increases fidelity and speed. Phusion DNA Polymerase is an ideal choice for cloning and can be used for long or difficult amplicons. With an error rate >50-fold lower than that of Taq DNA Polymerase and 6-fold lower than that of Pyrococcus furiosus DNA Polymerase (1), Phusion is one of the most accurate thermostable polymerases available. Phusion DNA Polymerase possesses 5´→ 3´ polymerase activity, 3´→ 5´ exonuclease activity and will generate blunt-ended products.

    Phusion High-Fidelity PCR Master Mix with GC Buffer offers robust performance and can be used for all PCR applications. It is a 2X master mix consisting of Phusion DNA Polymerase, deoxynucleotides and reaction buffer that has been optimized and includes MgCl2. All that is required is the addition of template, primers and water.

    Fidelity assays were performed using alacI-based method modified from Frey& Suppman, 1995.

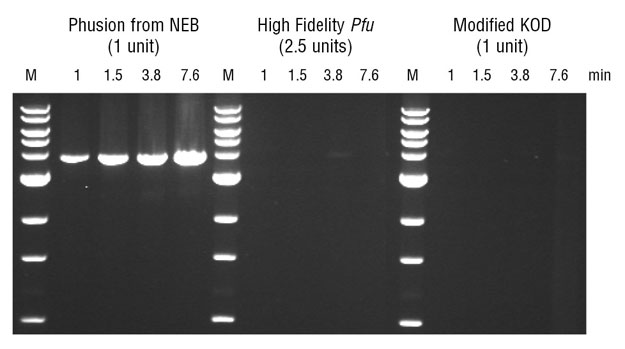

    A 3.8 kb fragment was amplified from 50 ng of Jurkat gDNA using different polymerases. Reactions were carried out according to the manufacturer's recommended conditions. Extension times are indicated (in minutes). Ladder L is a 1 kb DNA Ladder.

    Product Source

    An E. coli strain that carries the Phusion DNA Polymerase gene.

    Reagents Supplied

    The following reagents are supplied with this product:

    Store at (°C)Concentration
    DMSO100%

    Advantages and Features

    Features

    • Robust Reactions - maximal success with minimal optimization.
    • Extreme Fidelity - >50x greater than Taq
    • High Speed - dramatically reduced extension times (10x faster than Pfu)
    • High Yield - Increased product yield using minimal amount of enzymes.
    • Versatile - can be used for routine PCR as well as long or difficult templates.

    Applications

    • PCR
    • Cloning
    • Long or Difficult Amplification
    • High-Throughput PCR

    Properties and Usage

    Storage Temperature

    -20°C

    Heat Inactivation

    No

    Unit Assay Conditions

    25 mM TAPS-HCl (pH 9.3 @ 25°C), 50 mM KCl, 2 mM MgCl2, 1 mM β-mercaptoethanol, 200 µM dNTPs including [3H]-dTTP and 400 µg/ml activated Calf Thymus DNA.

    Unit Definition:
    One unit is defined as the amount of enzyme that will incorporate 10 nmol of dNTP into acid insoluble material in 30 minutes at 74°C.

    Reaction Conditions:
    1X Phusion High-Fidelity PCR Master Mix with GC Buffer, DNA template, 0.5 µM primers and 3% DMSO (optional) in a total reaction volume of 50 µl.

    Quality Control

    Quality Control Assays

    The following Quality Control Tests are performed on each new lot and meet the specifications designated for the product. Individual lot data can be found on the Product Summary Sheet/Datacard or Manual which can be found in the Supporting Documents section of this page.
    • PCR Amplification (Master Mix):
      The polymerase is tested in a polymerase chain reaction (PCR) using a control template and specific primers, resulting in the expected product.

    Notes

    1. Products specifications for individual components in the Phusion High-Fidelity PCR Master Mix with GC Buffer are available separately.

    References

    1. Frey, B. and Suppman, B. (1995). BioChemica. 2, 34-35.
    2. Chester, N. and Marshak, D.R. (1993). Analytical Biochemistry. 209, 284-290.

    Supporting Documents

    Material Safety Datasheets

    The following is a list of Material Safety Data Sheets (MSDS) that apply to this product to help you use it safely. The following file naming structure is used to name these document files: [Product Name] MSDS. For international versions please contact us at info@neb.com.

    Datacards

    The Product Summary Sheet, or Data Card, includes details for how to use the product, as well as details of its formulation and quality controls. The following file naming structure is used to name the majority of these document files: [Catalog Number]Datasheet-Lot[Lot Number]. For those product lots not listed below, please contact NEB at info@neb.com or fill out the Technical Support Form for appropriate document.
    1. What has changed?
    2. Have the formulations or any other characteristics of these products changed now that they are manufactured by NEB?
    3. Can I continue to use the same reaction conditions if I use Phusion® products with the new product numbers?
    4. Are the prices and sizes of these products the same now that they are manufactured by NEB?
    5. I am having trouble amplifying a template that is longer than 5kb. How can I optimize my product yield using Phusion® High-Fidelity PCR Master Mix?
    6. Why are there low molecular weight discrete bands on an agarose gel after a PCR using Phusion® High-Fidelity PCR Master Mix?
    7. What should my primer concentration be when using Phusion® High-Fidelity DNA Polymerase/Phusion® High-Fidelity PCR Master Mix?
    8. Will Phusion® Hot Start Flex 2X Master Mix incorporate dUTPs?
    9. Why are there high molecular weight smears or DNA in the wells of an agarose gel after a PCR using Phusion® High-Fidelity DNA Polymerase?
    10. What is the error rate of Phusion® High-Fidelity DNA Polymerase?
    1. Protocol for Phusion® High-Fidelity PCR Master Mix with GC Buffer

    Selection Tools

    Feature Articles

    Usage Guidelines & Tips

    Troubleshooting Guides

    Interactive Tools

    Phusion has different annealing temperature requirements than most PCR enzymes. Please check out www.neb.com/tmcalculator to help you determine your optimal Phusion annealing temperature.
