  • Quick-Load® 1 kb DNA Ladder

    Description

    Quick-Load® 1 kb DNA Ladder is a premixed, ready-to-load molecular weight marker containing bromophenol blue as a tracking dye.

    The DNA Ladder consists of proprietary plasmids which are digested to completion with appropriate restriction enzymes to yield 10 bands suitable for use as molecular weight standards for agarose gel electrophoresis. The digested DNA includes fragments ranging from 0.5-10.0 kilobases. The 3.0 kb fragment has increased intensity to serve as reference bands.

    N0468_thumb

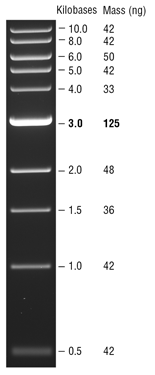

    1 kb DNA Ladder visualized by ethidium bromide staining on a 0.8% TAE agarose gel. Mass values are for 0.5 µg/lane.

    Properties and Usage

    Bases

    FragmentMassbp
    14210,002
    2428,001
    3506,001
    4425,001
    5334,001
    61253,001
    7482,000
    8361,500
    9421,000
    10a21517
    10b21500

    Effective Size Range

    500bp to 10,002bp

    Storage Temperature

    4°C

    Storage Conditions

    3.3 mM Tris-HCl
    11 mM EDTA
    0.015% bromophenol blue
    0.017% SDS
    2.5% Ficoll®-400
    pH 8.0 @ 25°C

    Notes

    1. Preparation of DNA: The double-stranded DNA is digested to completion with appropriate restriction enzymes, phenol extracted and equilibrated in storage buffer.
    2. We recommend loading 10 μl (0.5 μg) of Quick-Load 1 kb DNA Ladder per gel lane.
    3. In general, it is recommended to load 1µl per mm of gel lane.
    4. The Quick-Load DNA Ladder is not intended for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
    5. Quick-Load DNA Ladder is stable for at least 6 months at 25°C.
    6. For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing.

    References

    1. Sambrook, J., Fritsch, E. F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual, (2nd ed.), Cold Spring Harbor: Cold Spring Harbor Laboratory Press
      . 10.51-10.67.

    FAQs

    1. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
    2. How can I quantify the amount of DNA in each band of a marker?
    3. Can I use GelRed with the DNA Ladders from NEB?
    4. Can I use Midori Green with the DNA Ladders from NEB?
    5. Can I use SYBR® with the DNA Ladders from NEB?

    Tech Tips

    Mix well before use, especially after thawing.
