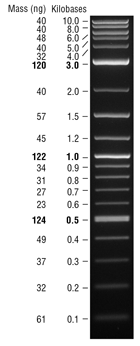

1 kb Plus DNA Ladder

The following reagents are supplied with this product:

NEB #	Component Name	Component #	Stored at (°C)	Amount	Concentration
N3200S     -20       1 kb Plus DNA Ladder N3200SVIAL -20 1 x 0.1 ml 1 mg/ml   Gel Loading Dye, Purple (6X), no SDS B7025SVIAL 25 1 x 1 ml 6 X

Companion Products

• 1 kb DNA Ladder
• 100 bp DNA Ladder
• 50 bp DNA Ladder
• PCR Marker
• Quick-Load® 1 kb DNA Ladder
• Quick-Load® 100 bp DNA Ladder
• Quick-Load^® 1 kb Plus DNA Ladder
• TriDye™ 1 kb DNA Ladder
• TriDye™ 100 bp DNA Ladder
• TriDye™ 1 kb Plus DNA Ladder
• Gel Loading Dye, Purple (6X), no SDS
• Monarch® Plasmid Miniprep Kit
• Monarch® DNA Gel Extraction Kit
• Monarch® PCR & DNA Cleanup Kit (5 μg)

Materials Sold Separately

• Gel Loading Dye, Purple (6X), no SDS

1. This ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
2. We recommend loading 0.5-1 μg of the 1 kb Plus DNA Ladder diluted in sample buffer.
3. All fragments have 4-base, 5´ overhangs that can be end labeled using T4 Polynucleotide Kinase (#M0201) or filled-in using DNA Polymerase I, Klenow Fragment (#M0210) (1). Use α-[32P] dATP or α-[32P] dTTP for the fill-in reaction.
4. 1 kb Plus DNA Ladder is stable for at least 3 months at 4°C.
5. For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength. DNA may denature if diluted in dH₂0.
6. 1X Gel Loading Dye, Purple (6X), no SDS:
   2.5% Ficoll^®-400
   10mM EDTA
   3.3mM
   Tris-HCL (pH 8.0@25°C)
   0.02% Dye 1
   0.001% Dye 2
7. Due to the limitations of the acrylamide gel technology, one or two extra bands may be visible on the DNA ladders when run on a polyacrylamide gel.

1. Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual(2nd Ed.). 10.51-10.67.

1. End-labeling Protocol
2. Suggested Loading Protocol for DNA Ladders & Markers

• DNA Markers & Ladders Selection Tool

1. Why are there extra bands visible on polyacrylamide gels?
2. What are the overhangs on the DNA ladder fragments? Can I end-label them using the T4 polynucleotide kinase (PNK)? What about the Klenow fragment?
3. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
4. How can I quantify the amount of DNA in each band of a marker?
5. Can I use Midori Green with the DNA Ladders from NEB?
6. Can I use SYBR^® and/or GelRed^® dyes with the DNA Ladders from NEB?
7. Why is my DNA Ladder floating out the wells and Why are there no bands visible in my DNA ladder gel lane?
8. What are the differences in the four versions of 2-Log, 100 bp and 1 kb DNA Ladders that NEB sells?
