NEBNext® Globin & rRNA Depletion Kit (Human/Mouse/Rat) with RNA Sample Purification Beads

Globin mRNA and rRNA are highly abundant in blood samples, and their efficient and specific removal is desirable in order to reveal the biological significance of less abundant transcripts.

The NEBNext® Globin & rRNA Depletion Kit (Human/Mouse/Rat) employs the NEBNext RNase H-based RNA depletion workflow to deplete globin mRNA, cytoplasmic rRNA and mitochondrial rRNA with human, mouse and rat samples, and is effective with intact and degraded RNA.

  • Efficient, specific depletion of rRNA and globin mRNA (adult, fetal and embryonic)
  • Suitable for low-quality or high-quality RNA
  • Compatible with a broad range of input amounts: 10 ng - 1 μg
  • Optional integration with poly(A) mRNA isolation workflows for removal of globin RNAs, rRNAs, and noncoding RNAs
  • Fast workflow: 2 hours, with less than 10 minutes hands-on time

The kit is also available without RNAClean® beads.

Catalog # Concentration Size List Price Your Price Quantity
E7755S Not Applicable 6 reactions $350.00
E7755L Not Applicable 24 reactions $1290.00
E7755X Not Applicable 96 reactions $4635.00
Please enter a quantity for at least one size

Need a custom/large volume order? Contact Us Want to try this product? Request a sample

Bulk packaging may also be available and requested for large recurring orders.
Learn More

  • Product Information

    The great majority of RNA in blood samples is comprised of cytoplasmic and mitochondrial ribosomal RNAs (rRNA) and globin mRNA. These highly abundant RNA species can conceal the biological significance of less abundant transcripts, and so their efficient and specific removal is desirable.

    The NEBNext® Globin & rRNA Depletion Kit (Human/Mouse/Rat) employs the NEBNext RNase H-based RNA depletion workflow to deplete adult, embryonic and fetal globin mRNA (HBA1/2, HBB, HBD, HBM, HBG1/2, HBE1, HBQ1 and HBZ), cytoplasmic rRNA (5S, 5.8S, 18S, 28S, ITS and ETS) and mitochondrial rRNA (12S and 16S).

    The kit is effective with human, mouse and rat total RNA preparations, both intact and degraded. The resulting depleted RNA is suitable for RNA-seq, random-primed cDNA synthesis, or other downstream RNA analysis.

    This kit can also be used following poly(A) mRNA enrichment (e.g., using the NEBNext poly(A) mRNA Magnetic Isolation Module NEB #E7490), so that the final depleted RNA contains only mRNA of interest and no non-coding RNA.

    The kit is also available without RNAClean® beads.

    Features

    • Efficient, specific depletion of rRNA and globin mRNA (adult, fetal and embryonic)
    • Suitable for low-quality or high-quality RNA
    • Compatible with a broad range of input amounts: 10 ng - 1 μg
    • Optional integration with poly(A) mRNA isolation workflows for removal of globin RNAs, rRNAs, and noncoding RNAs
    • Fast workflow: 2 hours, with less than 10 minutes hands-on time

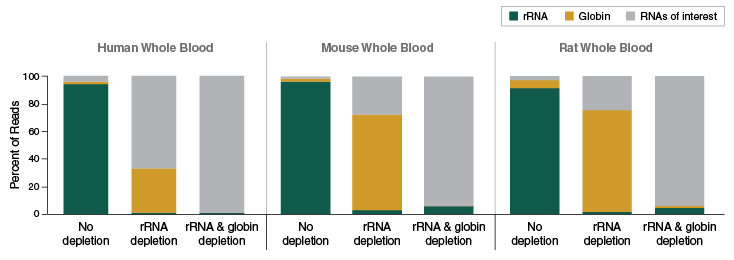

    Figure 1. Depletion of globin mRNA and ribosomal RNA enriches for RNAs of interest across species



    Human, mouse and rat whole blood total RNA (1 µg) was depleted of rRNA alone, or rRNA and globin mRNA transcripts, using the NEBNext Globin & rRNA Depletion Kit.  RNA-seq libraries were prepared from untreated and depleted RNA using the NEBNext Ultra™ II RNA Library Prep Kit for Illumina® followed by paired-end sequencing (2 x 75 bp). Reads were identified as rRNA or globin mRNA using mirabait (6 or more, 25-mers), and levels of rRNA and globin mRNA remaining were calculated by dividing matched reads by the total number of reads passing instrument quality filtering.

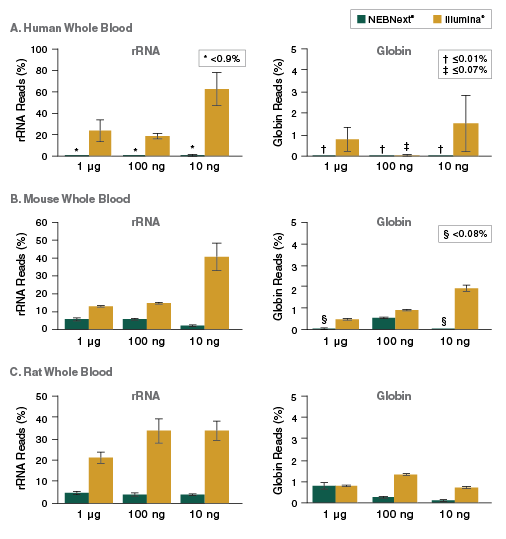

    Figure 2: Consistent Depletion Across Species and Across Inputs



    Human, mouse and rat whole blood total RNA (1 µg, 100 ng and 10 ng) was depleted of rRNA and globin mRNA using the NEBNext Globin & rRNA Depletion Kit or Globin-Zero® Gold rRNA Depletion Kit (Illumina®). RNA-seq libraries were prepared from untreated and depleted RNA using the NEBNext Ultra™ II RNA Library Prep Kit for Illumina® followed by paired-end sequencing (2 x 75 bp). Reads were identified as ribosomal or globin using mirabait (6 or more, 25-mers), and levels of rRNA and globin mRNA remaining were calculated by dividing matched reads by the total number of reads passing instrument quality filtering. The data represents an average of 3 replicates and error bars indicate standard error. The NEBNext Globin Depletion Kit is superior at depleting rRNA across species, and at depleting over 99% of globin mRNA.

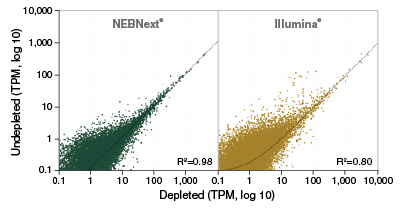

    Figure 3: Transcript expression correlation is maintained after depletion



    Human whole blood total RNA (1 µg) was depleted of rRNA and globin mRNA using the NEBNext Globin & rRNA Depletion Kit or Globin-Zero® Gold rRNA Depletion Kit (Illumina®). RNA-seq libraries were prepared from untreated and depleted RNA using the NEBNext Ultra™ II RNA Library Prep Kit for Illumina® followed by paired-end sequencing (2 x 75 bp). GENCODE v27 transcript abundances were estimated using Salmon. TPM (Transcript Per Million mapped reads) of protein coding transcripts, and R2 values for the linear fit are shown. Correlation analysis of the transcripts indicates better transcript expression correlation between depleted and undepleted samples for the NEBNext Globin & rRNA Depletion Kit. Treatment does not alter the abundances of non-targeted transcripts.

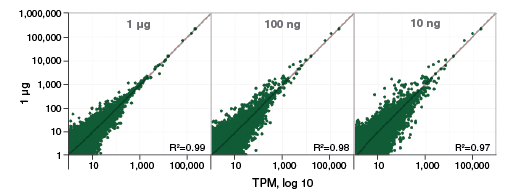

    Figure 4: Transcript expression correlation is maintained across a range of input amounts



    Human whole blood total RNA (1 µg, 100 ng and 10 ng) was depleted of rRNA and globin mRNA using the NEBNext Globin & rRNA Depletion Kit. RNA-seq libraries were prepared using the NEBNext Ultra™ II RNA Library Prep Kit for Illumina® followed by paired-end sequencing (2 x 75 bp). GENCODE v27 transcript abundances were estimated using Salmon. TPM (Transcript Per Million mapped reads) and R2 values for the linear fit are shown. Correlation analysis of the transcripts indicates consistent transcript expression regardless of input amount.




    Kit Components

    The following reagents are supplied with this product:

    NEB # Component Name Component # Stored at (°C) Amount Concentration
    • E7755S     Multi-temperature
    • E7755L     Multi-temperature
    • E7755X     Multi-temperature
    Product Categories:
    RNA Library Prep Products,
    NGS Sample Prep & Target Enrichment Products
    Applications:
    RNA Library Preparation,
    RNA-seq,
    RNA Analysis,
    NGS Sample Prep & Target Enrichment,
    Illumina Library Preparation
