pSNAP_f Vector

Reagents Supplied

The following reagents are supplied with this product:

NEB #	Component Name	Component #	Stored at (°C)	Amount	Concentration
N9183S     -20       pSNAPf Vector N9183SVIAL -20 1 x 0.04 ml 500 µg/ml

Features

BACKGROUND:

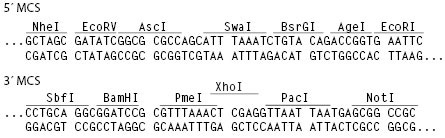

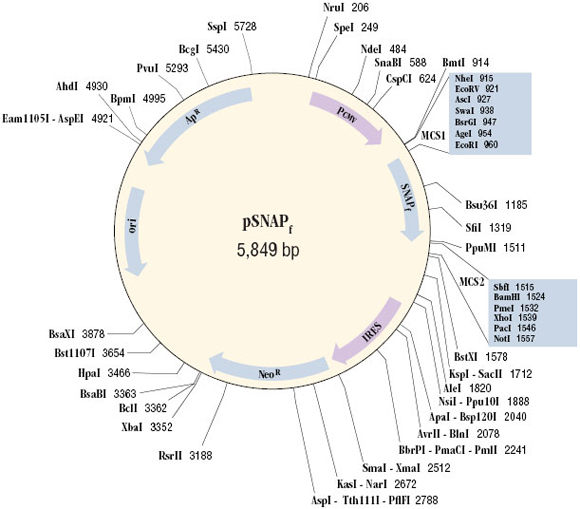

A plasmid map and the sequence of the cloning region can be found with these instructions. The complete plasmid sequence can be downloaded. This plasmid encodes the gene SNAP_f which is a mutant form of the human gene for O⁶-alkylguanine-DNA-alkyltransferase (hAGT). The codon usage of the gene is optimized for expression in mammalian cells. In the plasmid sequence, the SNAP_f gene is encoded from 969 bp to 1514 bp.

This plasmid is intended for the cloning and stable or transient expression of SNAP-tag protein fusions in mammalian cells. It is suitable for the efficient production of stable cell lines expressing SNAP_f gene fusions. The plasmid contains the CMV promoter followed by the genes for SNAP_f and neomycin resistance separated by the IRES of the encephalomyocarditis virus (ECMV), which permits the translation of two open reading frames from one messenger RNA; therefore after selection of stable mammalian cells for neomycin resistance, nearly all surviving colonies should stably express the SNAP_f fusion protein. Unless your expression experiments require a pure population of cells, you can simply use the pool of resistant cells, otherwise cell clones can be isolated and characterized using standard procedures.

The plasmid contains the β-lactamase (Ampicillin resistance) gene for maintenance in bacteria. The gene of interest can be cloned upstream or downstream of the SNAP_f coding sequence, as a fusion to the N- or C-terminus of the SNAP-tag. pSNAP_f Vector can also be used as an expression control plasmid, expressing SNAP_f alone, in which case the SNAP-tag protein is distributed throughout the cell. The SNAP_f gene can be isolated from the plasmid using PCR or direct cloning in order to subclone it into a different vector of choice.

1. Storage: pSNAP_f Vector issupplied in TE buffer (10 mM Tris-HCl, pH 8.0, 1 mM EDTA) at a concentration of0.5 µg/µl. Plasmid solutions can be stored at 4°C for up to one week. Forlong-term storage -20°C is recommended.


1. Keppler, A. et al. (2003). Nat. Biotechnol. 21, 86.
2. Gautier, A. et al. (2008). Chem. Biol. 15, 128.
3. Keppler, A. et al. (2004). Proc. Natl. Acad. Sci USA. 101, 9955.
4. Maurel, D. et al. (2008). Nat. Methods. 5, 561.
5. Jansen, L.E. et al. (2007). J. of Cell Biol. 176, 795.
6. Krayl, M., Guiard, B. Paal, K. and Vous, W. (2006). Anal. Biol. Chem. 355, 81-89.
7. Banala, S., Arnold, A. and Johnsson, K. (2008). ChemBio Chem. 9, 38-41.
