EpiMark^® Methylated DNA Enrichment Kit

The following reagents are supplied with this product:

NEB #	Component Name	Component #	Stored at (°C)	Amount	Concentration
E2600S     Multi-temperature       Bind/Wash Reaction Buffer (5X) B1032AVIAL 4 2 x 25 ml 5 X   NaCl High-Salt Elution Buffer (5M) B1033AVIAL 4 1 x 15 ml Not Applicable   LINE Primers for Methylated Controls N0485AVIAL 4 1 x 0.02 ml 100 µM   RPL30 Primers for Non-methylated Controls N0486AVIAL 4 1 x 0.02 ml 100 µM   MirA Primers for Input Control N0487AVIAL 4 1 x 0.02 ml 100 µM   MBD2a-Fc Protein M0358AVIAL -20 1 x 0.025 ml 2 mg/ml   Protein A Magnetic Beads S1426AVIAL 4 1 x 0.25 ml Not Applicable

Features

• High-affinity binding provides greater sensitivity.
• Elution in a small volume simplifies downstream applications.
• Easy-to-use protocol yields enriched fractions in less than 2 hours.
• Enriched methylated DNA fractions can be easily ligated to double-stranded adaptors for Next Generation Sequencing.
• Highly pure product from a wide range of input DNA concentrations.

Method Overview

Step I—Fragment Genomic DNA
DNA must be fragmented by sonication, nebulization or enzymatic treatment to an average size of less than 1,000 bp.

Step II—Combine MBD2-Fc and Protein A Magnetic Beads in 1X Bind/Wash Buffer.
Incubate the reaction for 15 minutes at room temperature. Wash beads two times in Bind/Wash Reaction Buffer.

Step III—Add fragmented DNA to MBD2-Fc / Protein A Magnetic Beads.
Incubate the reaction for 20 minutes at room temperature. Wash beads three times at room temperature for five minutes each to remove unbound DNA.

Step IV—Elute enriched methylated CpG DNA from beads
Incubate the sample at 65°C for 15 minutes in DNase-free water.

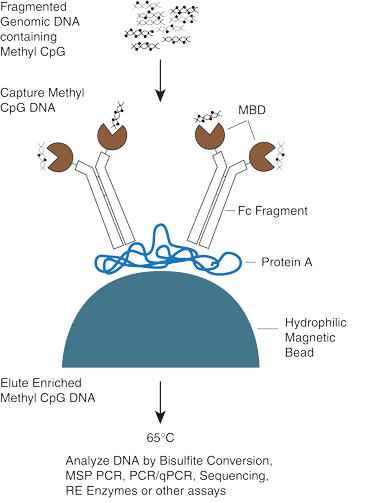

Figure 1. Enrichment workflow

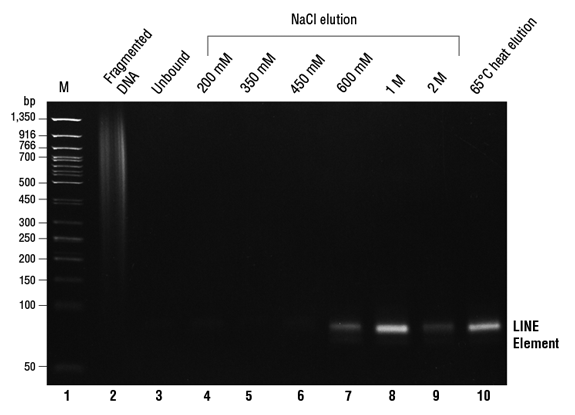

Figure 2: Endpoint PCR of a methylated locus (LINE) that has been purified using the EpiMark methylated DNA Enrichment Kit

Analyzed fractions are described above gel.

Companion Products

• Taq DNA Polymerase with Standard Taq Buffer
• 50 bp DNA Ladder
• 6-Tube Magnetic Separation Rack
• Deoxynucleotide Solution Mix

1. Cross, S.H., Charlton, J.A., Nan, X., and Bird, A.P. (1994). Nat. Genet. . 6, 236-244.
2. Fraga, M.F. et al. (2003). Nucleic Acids Res.. 31, 1765-1774.
3. Gebhard, C. et al. (2006). Nucleic Acids Res. . 34, e82.
4. Gebhard, C. et al. (2006). Cancer Research . 66, 6118-6128.
5. Jacinto, F.V., Ballestar, E. and Esteller, M. (2008). Biotechniques . 44, 35, 37, 39 passim.
6. Lister, R. et al. (2008). Cell. 133, 523-536.
7. Rauch, T. and Pfeifer, G.P. (2005). Lab Invest.. 85, 1172-1180.
8. Schilling, E. and Rehli, M. (2007). Genomics . 90, 314-323.
9. Weber, M. et al. (2005). Nat. Genet. . 37, 853-862.

1. DNA Fragmentation (E2600)
2. Prebind MBD2a-Fc to Protein A Magnetic Beads (NEB #E2600)
3. Capture Methylated CpG DNA (E2600)
4. Wash Off Unbound DNA (E2600)
5. Elute Captured Methylated CpG DNA (E2600)
6. Capture and Elute Step for Control DNA (E2600)
7. Downstream Analysis (NEB #E2600)
