TriDye™ 1 kb DNA Ladder

Description

TriDye™ 1 kb DNA Ladder is a pre-mixed, ready-to-load molecular weight marker containing 3 dyes which serve as visual aids to monitor the progress of migration during agarose gel electrophoresis.

The DNA Ladder consists of proprietary plasmids which are digested to completion with appropriate restriction enzymes to yield 10 bands suitable for use as molecular weight standards for agarose gel electrophoresis. The digested DNA includes fragments ranging from 0.5-10.0 kilobases. The 3.0 kb fragment has increased intensity to serve as a reference band.

TriDye During Electrophoresis: On a standard 1% agarose gel in 1X TBE, xylene cyanol FF migrates at approximately 4 kb, bromophenol blue at approximately 300 bp and the orange G at approximately 50 bp. As the percentage of agarose changes, the migration rates of the dyes relative to migration rates of the DNA will change.


N3272Fig2_thumb

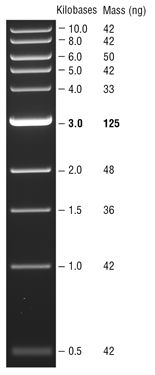

1 kb DNA Ladder visualized by ethidium bromide staining on a 0.8% TAE agarose gel. Mass values are for 0.5 µg/lane.

Properties and Usage

Bases

FragmentMassbp
14210002
2428001
3506001
4425001
5334001
61253001
7482000
8361500
9421000
10a21517
10b21500

Effective Size Range

500bp to 10,002bp

Storage Temperature

4°C

Storage Conditions

10 mM Tris-HCl
10 mM EDTA
10% Glycerol
0.006% bromophenol blue
0.06% Orange G
0.006% Xylene Cyanol
pH 7.9 @ 25°C

Notes

  1. We recommend loading 10 μl (0.5 μg) of TriDye DNA Ladder per gel lane.
  2. In general, it is recommended to load 1ul per mm of gel lane.
  3. The TriDye DNA Ladder was not designed for precise quantification of DNA mass but can be used for approximating the mass of DNA in comparably intense samples of similar size.
  4. TriDye DNA Ladder is stable for at least 6 months at 25°C.
  5. For long term storage, store at 4°C or -20°C. If stored at -20°C, mix well after thawing.

References

  1. Sambrook, J., Fritsch, E.F. and Maniatis, T. (1989). Molecular Cloning: A Laboratory Manual (2nd Ed.). 10.51-10.67.

FAQs

  1. Why are the DNA ladders showing up on my Southern blot? What is the sequence or composition of the ladder bands?
  2. How can I quantify the amount of DNA in each band of a marker?
  3. Can I use GelRed with the DNA Ladders from NEB?
  4. Can I use Midori Green with the DNA Ladders from NEB?
  5. Can I use SYBR® with the DNA Ladders from NEB?

Tech Tips

Mix well before use, especially after thawing.
