EpiMark® 5-hmC and 5-mC Analysis Kit


5-methylcytosine (5-mC) is the predominant epigenetic mark in mammalian genomic DNA. 5-hydroxymethylcytosine (5-hmC) is a newly discovered epigenetic modification that is presumably generated by oxidation of 5-mC by the TET family of cytosine oxygenases(1)ref.

Techniques exist that can identify 5-mC in genomic DNA, but the most commonly used method, bisulfite sequencing, is laborious and cannot distinguish between 5-mC from 5-hmC(2).

The EpiMark® 5-hmC and 5-mC Analysis Kit can be used to analyze and quantitate 5-methylcytosine and 5-hydroxymethylcytosine within a specific locus. The kit distinguishes 5-mC from 5-hmC by the addition of glucose to the hydroxyl group of 5-hmC via an enzymatic reaction utilizing T4 β-glucosyltransferase (T4-BGT). When 5-hmC occurs in the context of CCGG, this modification converts a cleavable MspI site to a noncleavable one.

The EpiMark 5-hmC and 5-mC Analysis Kit has the following features:
  • Complete conversion of 5-hmC to glucosylated 5-hmC in DNA.
  • Discrimination between 5-mC and 5-hmC in CCGG sequences using enzymatic.
  • Digestion and PCR amplification.
  • Relative quantitation of 5-mC and 5-hmC. Easy-to-use protocol.
This kit contains enough material for 20 reactions. An overview of the detection procedure is summarized in Figure 1.

Control DNA Sequence

Control DNA substrates are synthetic 100 bp double stranded fragments containing a single MspI/HpaII site (CCGG). The three fragments are identical except for modification of the internal C in this site.

FW Primer Sequence

REV Primer Sequence

Kit Components

The following reagents are supplied with this product:

Store at (°C)Concentration
Unmodified Control DNA-200.1 ng/μl
5-mC Control DNA-200.1 ng/μl
5-hmC Control DNA-200.1 ng/μl
MspI-20100,000 units/ml
HpaII-2050,000 units/ml
Uridine Diphosphate Glucose-2025X
NEBuffer™ 4-2010X
T4 Phage β-glucosyltransferase (T4-BGT)-2010,000 units/ml
Proteinase K, Molecular Biology Grade-20800 mg/ml
Forward and Reverse Control Primer Mix-2010 μM each

Properties and Usage

Materials Required but not Supplied

Heat block or water bath (suitable for temperatures of 37°C, 40°C and 95°C) PCR materials:
  • Locus-specific primers, flanking a CCGG site of interest
  • DNA polymerase for PCR
  • Nucleotides for PCR
  • PCR Thermal Cycler (for endpoint experiments, option IIIa)
  • Real-time PCR cycler (for quantitative experiments, option IIIb)
0.2 ml strip tubes and caps for PCR
1.5 ml reaction tubes
Molecular biology grade water

Storage Temperature


Method Overview

Method Overview

Step I: DNA Glucosylation Reaction with T4 β-glucosyltransferase (T4-BGT) Genomic DNA of interest is treated with T4-BGT, adding a glucose moeity to 5-hydroxymethylcytosine. This reaction is sequence-independent - therefore all 5-hmC will be glucosylated, unmodified or 5-mC containing DNA will not be  affected.

Step II: Restriction Endonuclease Digestion MspI and HpaII recognize the same sequence (CCGG) but are sensitive to different methylation status. HpaII cleaves only a completely unmodified site: any modification (5-mC, 5-hmC or 5-ghmC) at either cytosine blocks cleavage. MspI will recognize and cleave 5-mC and 5-hmC, but not 5-ghmC.

Step III: Interrogation of the Locus by PCR as little as 20 ng of input DNA can be used. Amplification of the experimental (glucosylated and digested) and control (mock glucosylated and digested) target DNA with primers flanking a CCGG site of interest (100–200 bp) is performed. If the CpG site contains 5-hydroxymethylcytosine, a band is detected after glucosylation and digestion, but not in the non-glucosylated control reaction (see Figure 2). Real time PCR will give an approximation of how much hydroxymethylcytosine is in this particular site.

Figure 1a: Experimental Overview Figure 1a: Experimental Overview

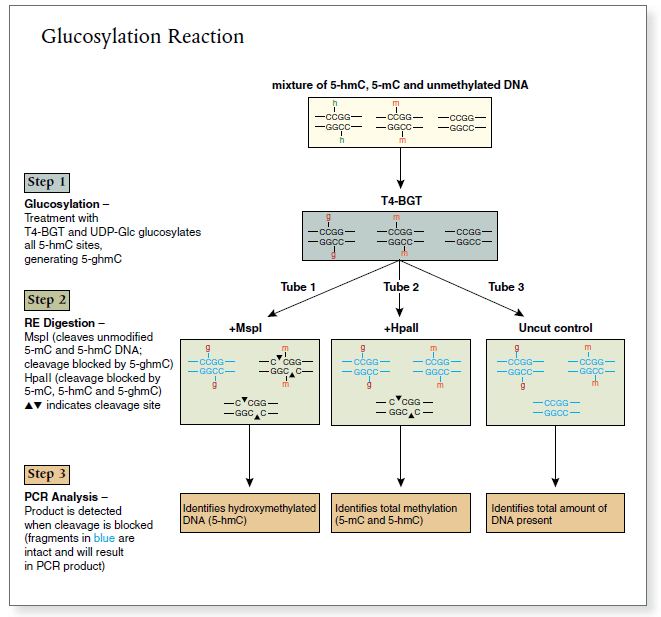

The DNA of interest is treated with T4 β-Glucosyltransferase (T4-BGT) and UDP-Glucose (UDP-Glc). T4-BGT transfers glucose from UDP-Glc onto 5-hydroxymethylcytosine (generating glucosylated 5-hydroxymethylcytosine [5-ghmC]). MspI cuts DNA containing 5-hmC, but does not cut 5-ghmC containing sites; in contrast, HpaII is blocked by any of these modifications. Presence of 5-hmC and 5-mC can be determined by PCR analysis.
Figure 1b: Experimental Overview Figure 1b: Experimental overview

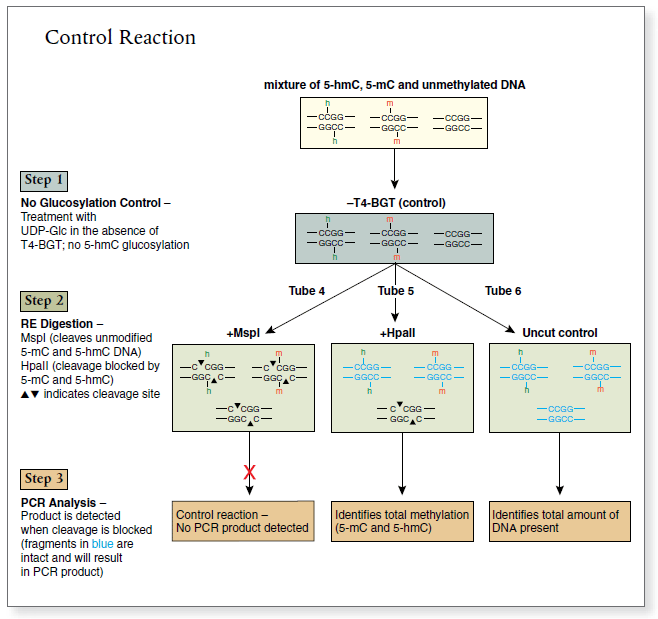

The DNA of interest is digested following a control reaction with UDP-Glucose (UDP-Glc) and no T4 β-Glucosyltransferase (T4-BGT), leaving 5-hmC unmodified. MspI cleaves unmodified, 5-mC and 5-hmC DNA, while HpaII cleaves only unmodified DNA.

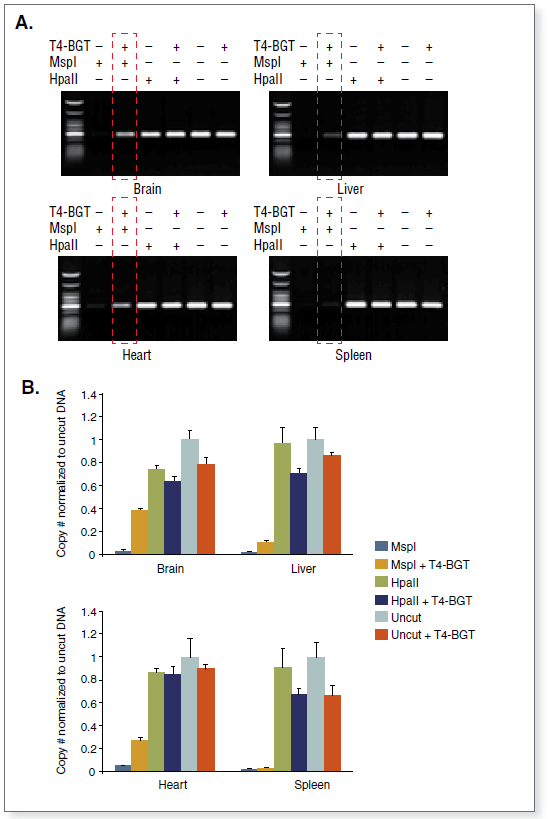

Figure 2: Comparison of 5-hydroxymethylcytosine amounts at locus 12 in different mouse Balb/C tissue samples. (A) End-point PCR. (B) Real time PCR. Figure 2: Comparison of 5-hydroxymethylcytosine amounts at locus 12 in different mouse Balb/C tissue samples. (A) End-points PCR. (B) Real time PCR

DNA from four mouse tissues was analyzed. For comparative purposes, real time PCR data were normalized to uncut DNA. A standard curve was used to determine copy number. The samples could be normalized by dividing the copy number of samples No 1-6 by the copy number of the control that is undigested (No 5). Boxed gel lane shows variation in 5-hmC present.
Figure 3: High sensitivity 5-hydroxymethylcytosine detection achieved by the EpiMark kit. Figure 3: high sensitivity 5-hydroxymethylcytosine detection achieved by the EpiMark kit.

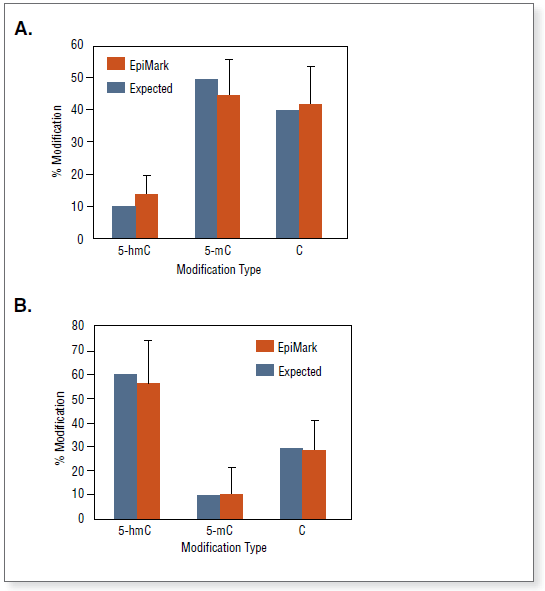

100 bp unmodified, 5-mC, and 5-hmC control DNAs were mixed in different ratios (blue bars), and then measured with the EpiMark hydroxymethylated DNA detection kit (orange bars). Error bars represent the standard deviation of four independent experiments.
