  • λ DNA-BstEII Digest

    Description

    The BstEII digest of lambda DNA (cI857 ind 1 Sam 7) yields 14 fragments suitable for use as molecular weight standards for agarose gel electrophoresis (1). The approximate mass of DNA in each of the bands is provided (assuming a 1.0 μg load) for approximating the mass of DNA in comparably intense samples of similar size.

    Comes supplied with 1 vial of Gel Loading Dye, Purple (6X), no SDS.



    N3014_thumb

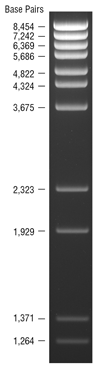

    Lambda DNA-BstE II Digest visualized by ethidium bromide staining. 1.0% agarose gel.

    Reagents Supplied

    The following reagents are supplied with this product:

    Store at (°C)Concentration
    Gel Loading Dye, Purple (6X), no SDS256X

    Properties and Usage

    Bases

    FragmentMassbp
    11748,454
    21497,242
    31316,369
    41175,686
    5994,822
    6894,324
    7763,675
    8482,323
    9401,929
    10281,371
    11261,264
    1214702
    135224
    142117

    Effective Size Range

    117bp to 8,454bp

    Storage Temperature

    -20°C

    Storage Conditions

    10 mM Tris-HCl
    1 mM EDTA
    pH 8.0 @ 25°C

    Notes

    1. For long term storage, store at -20°C. If samples need to be diluted, use TE or other buffer of minimal ionic strength. DNA may denature if diluted in dH20 and subsequently heated. Temperatures > 60°C may cause denaturation.
    2. The cohesive ends of fragments 1 and 4 may be separated by heating to 60°C for 3 minutes.
    3. 1X Gel Loading Dye, Purple, no SDS:
      2.5% Ficoll®-400
      10mM EDTA
      3.3mM Tris-HCl (pH 8.0@25°C)
      0.02% Dye 1
      0.001% Dye 2

    References

    1. Daniels, D.L. et al (1983). Appendix II: Complete Annotated Lambda Sequence. R.W. Hendrix, J.W. Roberts, F.W. Stahl and R.A. Weisberg(Ed.), Lambda-II. 519-676. New York: Cold Spring Harbor Laboratory Press.
    2. Forster, A.C. et al. (1985). Nucl. Acids Res. 13, 745-761.

    FAQs

    1. What are the overhangs on the DNA ladder fragments? Can I end-label them using the T4 polynucleotide kinase (PNK)? What about the Klenow fragment?
    2. How can I quantify the amount of DNA in each band of a marker?
    3. Why does my Lambda DNA molecular weight marker appear smeared and not represent the correct banding pattern?
    4. Can I use GelRed with the DNA Ladders from NEB?
    5. Can I use Midori Green with the DNA Ladders from NEB?
    6. Can I use SYBR® with the DNA Ladders from NEB?

    Tech Tips

    Heat at 60C for 3 minutes to separate the cohesive ends of fragments 1 and 4.

    To make it ready-to-load, dilute in TE buffer instead of water.

    Protocols

    1. Suggested protocol for loading a sample
