  • The K. lactis Expression Kit (NEB #E1000) provides an easy method for expressing a gene of interest in the yeast Kluyveromyces lactis. Proteins may be produced intracellularly or be secreted using the supplied integrative expression vector pKLAC2. To achieve protein secretion, a gene of interest is cloned downstream of the K. lactis α-mating factor secretion domain (α-MF) which is eventually processed in the Golgi resulting in secretion of the desired protein.

    The K. lactis expression system offers several advantages over other yeast and bacterial protein expression systems. First, K. lactis has been used to produce proteins at industrial scale in the food industry for over a decade due to its ability to rapidly achieve high culture densities and abundantly produce recombinant proteins. Second, yeast expression is driven by a variant of the strong LAC4 promoter that has been modified to lack background expression in E. coli (1). Therefore, genes toxic to E. coli can be cloned into pKLAC2 in bacteria prior to their expression in yeast. Third, the kit includes highly competent K. lactis cells making the technology easy-to-use for those not accustomed to working with yeast. Their high transformation efficiency makes the system suitable for methods that require large numbers of transformants, for example, expression cloning using cDNA libraries. Selection of yeast transformants uses a unique antibiotic-free method in which acetamidase (amdS) expressed from pKLAC2 permits transformed cells to utilize acetamide as a sole nitrogen source on defined medium. Acetamide selection promotes formation of cells containing multiple integrations of pKLAC2 which results in higher yields of protein. Finally, proteins expressed in K. lactis have access to eukaryotic protein folding and glycosylation machinery that E. coli cells do not possess, making it an important alternative to bacterial expression systems.

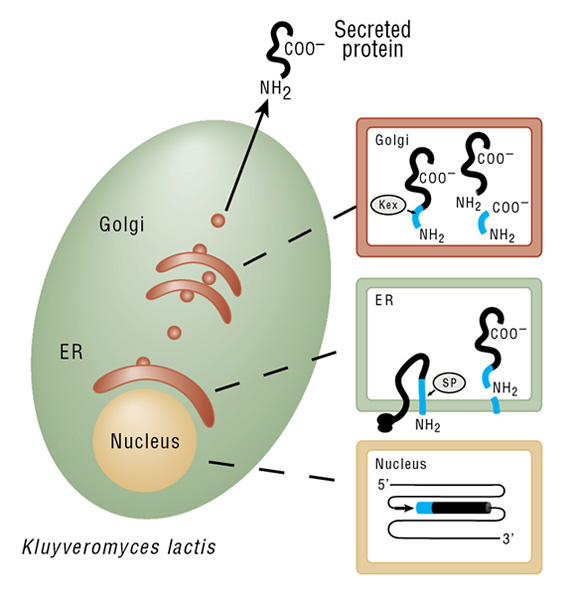

    In the nucleus, an integrated expression vector encoding a fusion between the α-MF domain (blue) and a desired protein (black) is expressed. A signal peptide in the α-MF domain directs entry of the fusion protein into the endoplasmic reticulum (ER) and is removed by signal peptidase (SP). The fusion protein is transported to the Golgi where the Kex protease removes the α-MF domain. The protein of interest is then secreted from the cell.

    References

    1. Colussi, P.A. and Taron, C.H. (2005) Appl. Environ. Microbiol., 71, 7092–7098. PMID: 16269745
    2. Read, J.D. et al. (2007) Appl. Environ. Microbiol., 73, 5088–5096. PMID: 17586678

    Featured Products

      Publications related to Yeast:

    1. Ganatra, M.B., Rainauskas, S., Hong, J.M., Taylor, T.E., Denson, J.P.M., Esposito, D., Read, J.D., Schmeisser, H., Zoon, K.C., Hartley, J.L. and Taron, C.H. (2011)A set of aspartyl protease-deficient strains for improved expression of heterologous proteins in Kluyveromyces lactis FEMS Yeast Res. 11, 168-178. PubMedID: 21166768
    2. Feng, Z., et al. (2011)Disruption of PMR1 in Kluyveromyces lactis improves secretion of calf prochymosin J. Sci. Food Agric. 15, 100-103.
    3. Zhou, X., et al. (2011)Expression of heparin sulfate sulfotransferases in Kluyveromyces lactisand preparation of PAPS Glycobiology Advance Access
    4. Rocha S.N., et al. (2011)Heterologous expression of a thermophilic esterase in Kluyveromyces yeasts Appl. Microbiol. Biotechnol. 89, 375-85. PubMedID: 20862582
    5. Feng, Z., et al. (2010)Codon optimization of the calf prochymosin gene and its expression in Kluyveromyces lactis World J. Microbiol. Biotechnol. 26, 895-901.
    6. Kuo, D., et al. (2010)Evolutionary divergence in the fungal response to fluconazole revealed by soft clustering Gen. Bio.  11, R77. PubMedID: 20653936
    7. Yuan W, et al. (2010)Gene synthesis of the bovine prochymosin gene and high-level expression in Kluyvermyces lactis Sheng Wu Gong Cheng Xue Bao 26, 1281-1286. PubMedID: 21141120
    8. Rocha, S.N., et al. (2010)Heterologous expression of glucose oxidase in the yeastKluyveromyces marxianus Microb. Cell Fact. 21, PubMedID: 20092622
    9. Feng, Z., et al (2009)Effect of temperature-shift strategy on recombinat chymosin of Kluyveromyces Lactis Heilongjiang Animal Science and Veterinary Medicine 2009-2013.
    10. Madinger, C.L., Sharma, S.S., Anton, B.P., Fields, L.G., Cushing, M.L., Canovas, J., Taron, C.H. and Benner, J.S. (2009)The effect of carbon source on the secretome of Kluyveromyces lactis Proteomics 9, 4744-4754. PubMedID: 19743416
    11. Platko, J.D., et al. (2008)Heterologous expression of Mytilus californianus foot protein three (Mcfp-3) in Kluyveromyces lactis Platko, J.D., et al. 57, 57-62. PubMedID: 17923416
    12. Swaim, C.L., et al. (2008)Physical and computational analysis of the yeast Kluyveromyces lactissecreted proteome Proteomics 8, 2714-2723. PubMedID: 18601269
    13. Takakuwa, N., Oshnishi, M., and Oda, Y. (2008) Significance of the KLAC1 gene in glucosylceramide production by Kluyveromyces lactis FEMS Yeast Res 9, 839-846. PubMedID: 18631186
    14. Sugiki, T. Shimada, I. and Takahashi H. (2008) Stable isotope labeling of protein byKluyveromyces lactis for NMR study J. Biomol NMR. 42, 159-62. PubMedID: 18827973
    15. Foster, J.M., Raverdy, S., Ganatra, M.B., Colussi, P.A., Taron, C.H. and Carlow, C.K.S. (2008)The Wolbachia endosymbiont of Brugia malayi has an active phosphoglycerate mutase: a candidate target for anti-filarial therapies Parasitol. Res.  PubMedID: 19043737
    16. Read, J.D., Colussi, P.A., Ganatra, M.B. and Taron, C.H. (2007)Acetamide selection of Kluyveromyces lactis cells transformed with an integrative vector leads to high frequency formation of multicopy strains Appl. Environ. Microbiol. 73, 5088-5096. PubMedID: 17586678
    17. Zhao, H.L., et al. (2007)Circumventing the heterogeneity and instability of human serum albumin-interferon-_2b fusion protein by altering its orientation J. Biotech.  131, 245-252. PubMedID: 17698234
    18. Wamalwa, B.M., et al. (2007) High-Level Heterologous Expression of Bacillus halodurans Putative Xylanase Xyn11A (BH0899) in Kluyveromyces lactis Biosci. Biotechnol. Biochem. 71, 688-693. PubMedID: 17341817
    19. Van Ooyen, A.J.J., Dekker, P., Huang, M., Olsthoorn, M.M.A., Jacobs, D.I., Colussi P.A., and Taron, C.H. (2006)Heterologous protein production in the yeast Kluyveromyces lactis FEMS Yeast Res. 6, 381-392. PubMedID: 16630278
    20. Colussi, P.A., Specht, C.A. and Taron, C.H. (2005)Characterization of a nucleus-encoded chitinase from the yeast Kluyveromyces lactis Appl. Environ. Microbiol. 71, 2862-2869. PubMedID: 15932978
    21. Colussi, P.A. and Taron, C.H. (2005)Kluyveromyces lactis LAC4 promoter variants that lack function in bacteria but retain full function in K. lactis Appl. Environ. Microbiol. 71, 7092-7098. PubMedID: 16269745

    Expression of MBP with K. lactis

    Lane 1: Protein Marker, Broad Range (NEB #P7702).
    Lane 2: spent culture medium (15 µl) from wild-type K. lactis cells.
    Lane 3: spent culture medium (15 µl) from K. lactis cells harboring an integrated expression cassette containing the E. coli malE gene

    The pKLAC2 Expression Vector

    pKLAC2 (9107 bp) contains the 5´ and 3´ ends of the LAC4 promoter (PLAC4-PBI) separated by DNA encoding β-lactamase (ApR) and the pMB1 origin (ori) to allow for its propagation in E. coli. The K. lactis α-mating factor secretion leader sequence (α-MF), multiple cloning site (MCS), and the LAC4 transcription terminator (TT) lie immediately downstream of 3´ PLAC4-PBI. The yeast ADH1 promoter (PADH1) drives expression of an acetamidase selectable marker gene (amdS). The vector can be linearized by digestion with SacII or BstXI to create a linear DNA fragment capable of inserting into the native LAC4 promoter region of the K. lactis genome.

    pKLAC2 Multiple Cloning Site

    pKLAC2 (9107 bp) contains the K. lactis a-mating factor secretion leader sequence (blue background) and a polylinker immediately downstream of the PLAC4-PBI promoter. Unique polylinker restriction sites are indicated. Half arrows show the positions of pKLAC-series vector-specific sequencing primers available from New England Biolabs.
