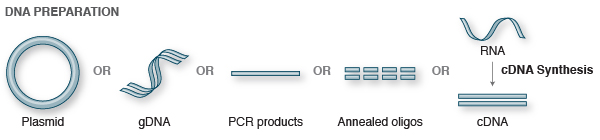

Traditional cloning by restriction endonuclease digestion can use any of a number of different source DNA types. Genomic DNA can be digested with a restriction enzyme and cloned into a compatible vector site to produce a library of different inserts, all from the same source DNA. DNA already cloned into one vector can be transferred (subcloned) to a new recipient vector by cutting out the DNA with restriction enzymes and cloning into the corresponding sites of the second vector. This is frequently undertaken to facilitate protein expression or transcription of RNA, for example, which might not be possible from the original vector.
PCR is often used for generating DNA for cloning and frequently restriction sites are incorporated into the primer sites so that the amplified DNA can be digested and cloned into compatible restriction sites of the cloning vector. Any type of DNA containing the desired sequence can serve as the template for PCR. Cloning with two distinct restriction enzymes ensures that non-compatible ends are generated on each molecule, thereby preventing simple vector recircularization and forcing inserts to be cloned directionally. This can be important for ensuring a translational open reading frame for protein expression. Modification of DNA ends following restriction digestion can be helpful in certain situations. For example, in non-directional cloning, where a single restriction enzyme is used, dephosphorylation of the digested vector DNA will prevent recircularization of the vector, thereby increasing the proportion of the desired recombinant DNA molecules.
PCR is increasingly used for preparing DNA for cloning applications. Amplified DNA can either be cloned directly, or following restriction digestion with restriction sites engineered into the primers used for PCR. Alternatively, amplified DNA can be used in Seamless Cloning strategies such as NEBuilder HiFi DNA Assembly or in Ligation Independent Cloning. The vector molecules for these cloning methods may also be produced by PCR. DNA amplified with Taq polymerase has a template-independent single adenosine (A) added at the 3’ ends which allows cloning into complementary T-tailed vectors. High-fidelity proofreading polymerases do not add additional bases allowing cloning of the amplified DNA into blunt-ended restriction sites. Depending on the chosen cloning strategy, the ends of amplified DNA can be modified by A-tailing, blunting, or addition or removal of 5’-phosphate groups. Complementary DNA (cDNA) generated by reverse transcription of RNA can also be amplified by PCR. This ability to synthesize DNA from RNA templates enables cloning of sequences corresponding to gene transcripts.
DNA Preparation includes these areas of focus:
Protocols for DNA Preparation
- Affinity Purification and On-column Cleavage (E6901)
- Cloning with USER Enzyme
- Comet Assay - Modified for Detection of Oxidized Bases Using the Repair Endonucleases Fpg, hOGG1 and Endonuclease III (Nth)
- Construction of the Fusion Plasmid (E6901)
- Double Digest Protocol with Standard Restriction Enzymes
- Fusion Constructs (E6901)
- Fusion Protein Expression (E6901)
- Optimizing Restriction Endonuclease Reactions
- Preparation of Media and Solutions (E6901)
- Primer Design for Restriction Enzyme Cloning (E6901)
- Protocol for Cre Recombinase (M0298)
- Protocol for Digestion Prior to droplet digital PCR (ddPCR)
- Protocol for Direct Digestion of gDNA during droplet digital PCR (ddPCR)
- Protocol for generating 32 bp fragments from modified CpG sites in genomic DNA using FspEI
- Protocol for generating 32 bp fragments from modified CpG sites in genomic DNA using MspJI
- Simplified Expression and Purification Protocol (E6901)
